Conductivity 3100

Dependable in-line conductivity meter

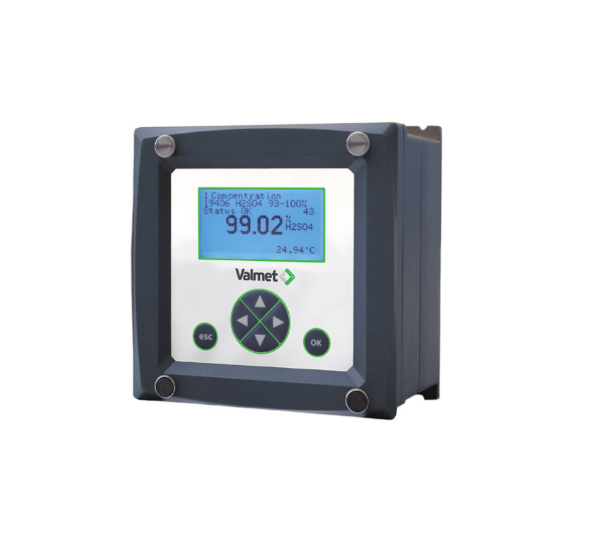

Accurate conductivity measurements are central to many industrial processes. The Valmet Conductivity Measurement 3100 delivers precise in-line readings you can rely on for years and years with little to no maintenance needed.

Reliable results from trustworthy technology

Based on 4-electrode technology developed by Kemotron, Valmet's conductivity meters have proven their value in tough applications around the world. Thanks to their unique design, the sensors are highly resistant to scaling, delivering accurate results of over their entire life.

Valmet conductivity meters have a typical lifetime of more than 10 years, even in the harshest environments. After years of constant use, conductivity readings remain exceptionally accurate with minimum maintenance. All Valmet transmitters and sensors are made in Finland to the highest standards.

Change sensors without re-calibration

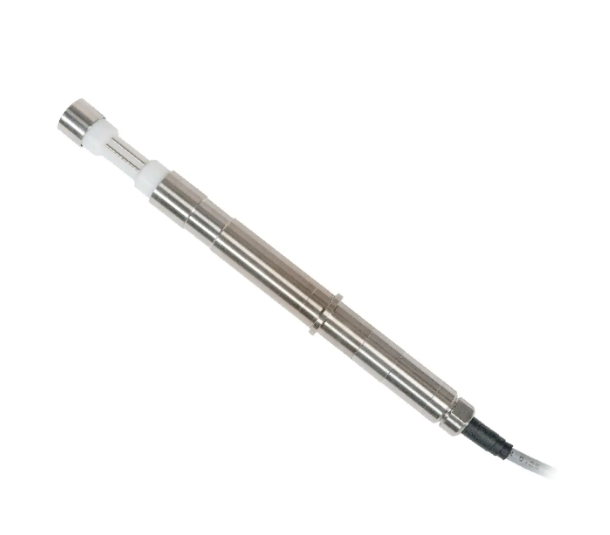

The conductivity sensors feature a robust yet simple construction that can withstand fast temperature changes. All sensitive components are located far from the measurement head to ensure resilience and operability. Our sensor range supports applications with up to 50 bar and 250 °C.

When it comes time to work on the sensor, changing units is easy. The cell constant is stored in the conductivity sensor and automatically recognized by the transmitter. You can switch to a new sensor unit without needing recalibrate or reenter the cell constant.

Certified for a wide range of applications

We offer a very broad selection of conductivity sensors. Our 4100 series sanitary sensors are designed for applications in food, dairy, beverage, and pharmaceutical industries. Select sensors fulfill EHEDG requirements for material, surface roughness, and steam cleaning.

Valmet sanitary sensors are EHEDG Type EL Class 1 certified. In addition, all wetted surfaces fulfill the hygienic requirement for surface roughness (Ra ˂ 0.8 µm). Metal parts are made from high-grade AISI316L stainless steel, and plastic (Teflon) components fulfill both EU and FDA requirements for materials used in contact with food.

Typical applications for Valmet sanity sensors include:

Cleaning in place (CIP) control
Phase separation
Steaming in place (SIP) control

We also offer special retractable sluice-mounted sensors.

Our 4200 series industrial sensors serve a wide range of applications in pulp & paper, power, and various heavy industries. Typical applications for Valmet industrial sensors include:
