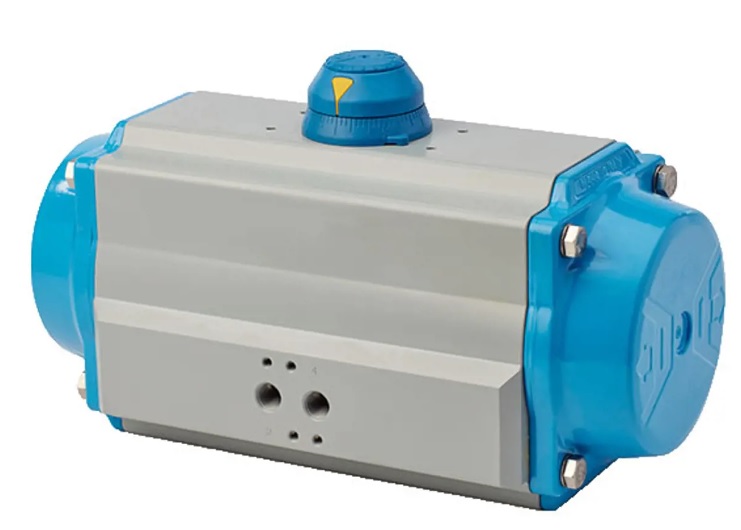

Jamesbury™ Valv-Powr™ (VPVL)
Compact rack and pinion piston pneumatic actuator
Jamesbury Valv-Powr VPVL series pneumatic actuator for fast, efficient, and economical operation of rotary valves.
Features

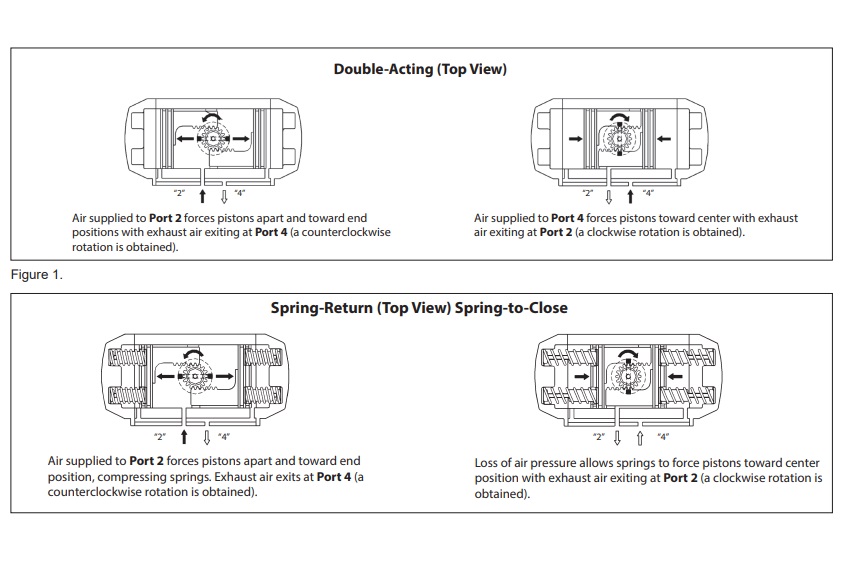

- Modular design utilizing same body and end caps for both double-acting and spring-return versions
- Compact and light weight
- High cycle life with low friction bearings on all rotating and sliding surfaces
- ISO 5211 mounting pattern
- ATEX certified
- Machined gear teeth provide longest life and smoother operation
- Safety contained springs prevent hazards of inadvertent ejection during maintenance
- Corrosion resistant with PTFE coated body, polyester coated end caps, and stainless steel fasteners

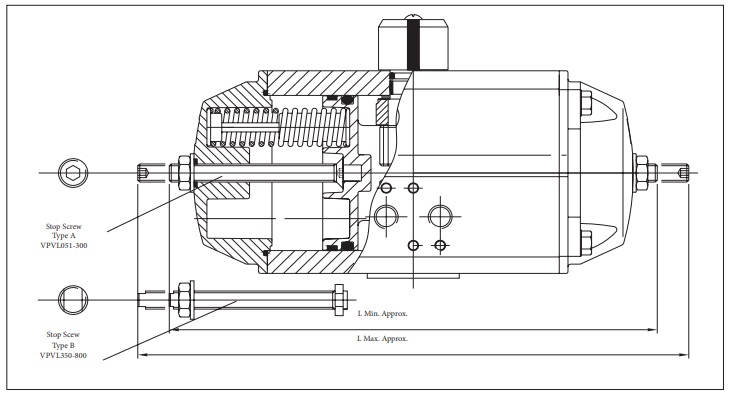

- Adjustable stops for both open and closed positions
- Torque output: 3.2 to 7187 Nm / 2.5 to 5300 lb-ft
- Operating pressure: 2 to 8 bar / 30 to 116 psi
- Standard temperature range: -40 °C to +80 °C / -40 °F to +176 °F
- Options: Extended temperature ranges available from -51 °C (-60 °F) up to +15 0°C (+302 °F). Many options available including mechanical lock-out, 100% adjustable stop, and various protection coatings.
- Versatile, modular design
- Long cycle life
- Safe and reliable
