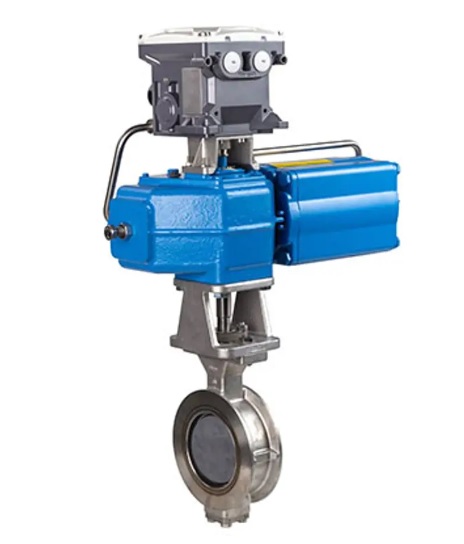

Neles™ Butterfly L12
Neldisc™ high performance triple eccentric valves

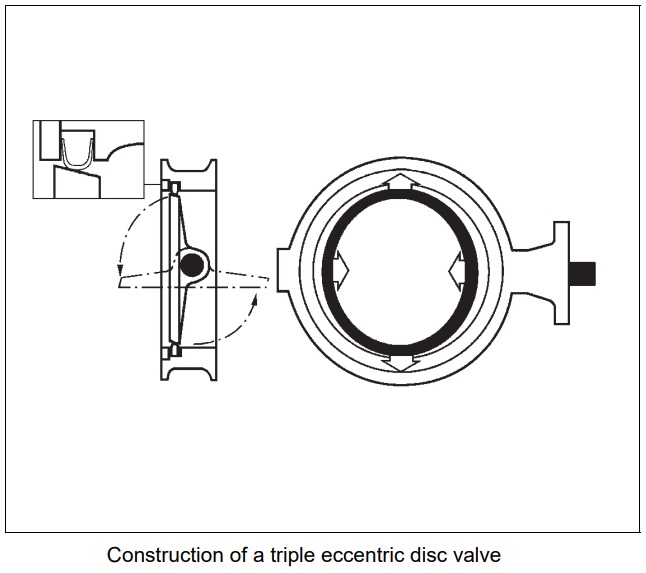

Neles Neldisc series L12 triple eccentric disc valve operate both in control and shut-off applications, with close to equal percentage characteristics and superior tightness.
Features
- Tripple offset, 2 piece shaft design
- One piece, full metal sealing without any resilient parts in pipeline
- High, long lasting tightness
- Minimized actuator torque. Smaller actuator and lower piping stress
- In-built thermal and pressure compensation
Applications
- Pulp & paper
- Power generation
- Series: L12
- Design: Wafer type
- Size range: DN 80 - 1400, 3" - 56"
- Pressure class: PN 10, 16, 25 and ANSI 150
- Temperature range: -50 °C … +260 °C / -60 °F…+500 °F
- Minimized pressure loss and energy costs of the process
- Consistent performance even in the most difficult, changing process conditions
- Industry best valve capacity
- Suitable to dirty and abrasive services
