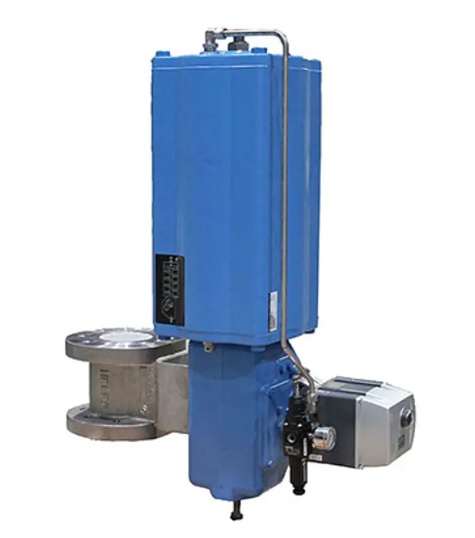

Neles™ Ceramic - Series E
Fully ceramic flow path control valve for highly erosive applications
Neles series E ball control valves are designed to meet the most severe erosive service requirements of wide range of industrial applications in pulp & paper, petro-chemical, refining and related industries. E series valves using new generation ceramic material lined flow path and trim parts are suitable for highly abrasive rotary control applications. Ceramic valves enable to extend the plant process availability and lower the maintenance costs.
Features
- Completely ceramic flow path, no metallic components
- Material designed to withstand thermal shocks
- Robust backlash free ball to stem connection, stainless steel stem
- Lug and wafer body type options
- One piece body
- Low Cv trim options for small capacity applications
- Live loaded packing
Applications
- Slurries
- Fluids with hard particles
- Construction: Ceramic flow path, reduced port, wafer & lugged, control ball valve

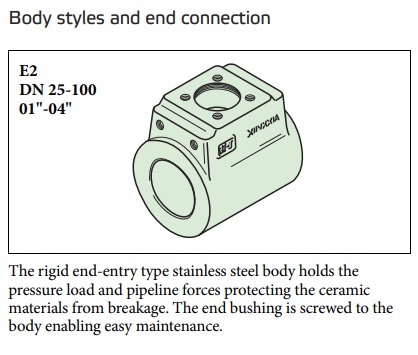

- Size range (wafer, E2): DN 25 - 100 / 1" - 4"

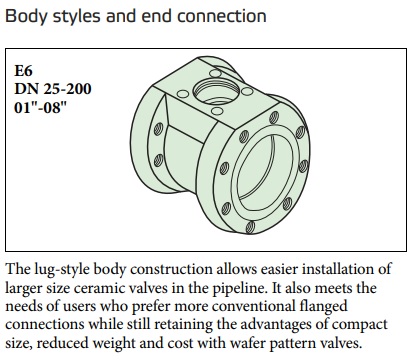

- Size range (lugged, E6): DN 25 - 200 / 1" - 8"
- Body materials: Stainless steel / Magnesia, partially stabilized Zirconia (Mg-PS2) / Metal Matrix Composite (MMC)
- Pressure ratings: PN 10 - 40 / ASME 150 - 300
- Temperature range: -40 to +450 °C / -40 to +840 °F
- Increased service life, no easily wearing metallic parts in flow path
- Capable of operating also in extended temperatures
- Reduced number of leakage paths due to body design
- Low emissions
