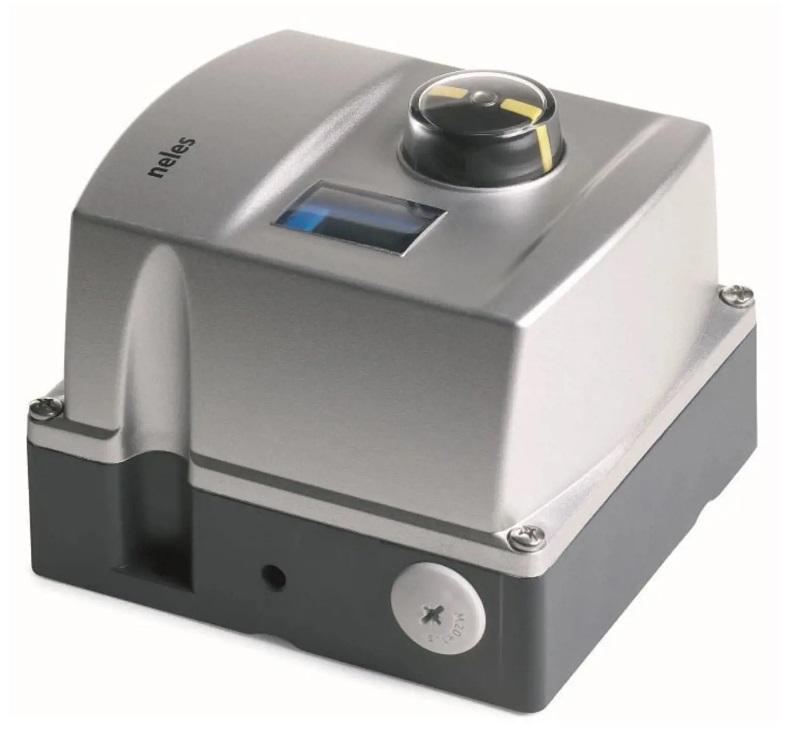

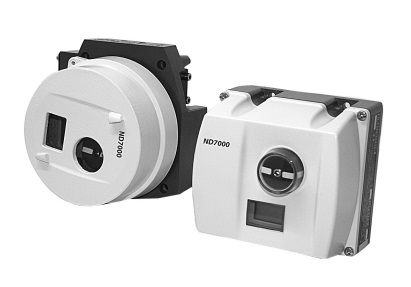

Neles™ ND9000 and ND7000

Intelligent valve controller, fit for purpose

Neles ND9000 is designed to operate on every control valve actuator and in all industry areas. ND9000 is a smart, reliable and future-proof positioner with life-time support. Its superior design features and unique diagnostics provide a solid foundation for performance optimization and proactive maintenance.

Features

Benchmark control performance on rotary and linear valves
Superior diagnostics and data storage capabilities
Local and remote configuration
Easy interpretation of diagnostics data
Efficient mounting program for all types of actuators
Low power consumption
Available for HART, PROFIBUS-PA and FOUNDATION Fieldbus networks
Reliable and robust design
Device self diagnostics
SIL 2 approved device

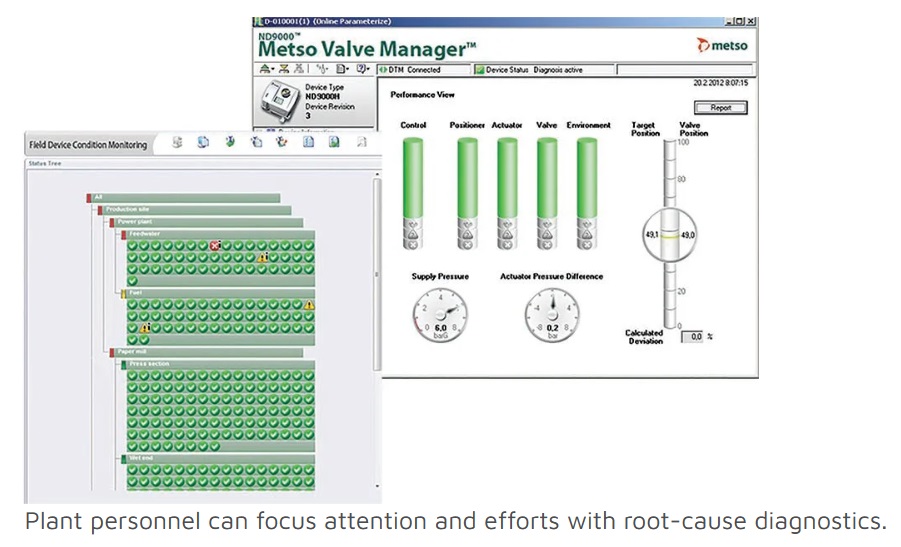

On-line, performance and communication diagnostics
Hot swap support: possibility to install also on valves that are in process with 1-point calibration feature

Applications

ND9000 can be integrated with all major DCS systems
Mounting kits for any 3rd party actuators
Remote mounting
Marine approved

Temperature range (standard): -40 ... +85 °C / -40 ... +185 °F
Temperature range(arctic version): -53 ... +85 °C / -63 +185 °F
Communication: HART, FOUNDATION fieldbus, Profibus PA
Protection class: IP66 / NEMA 4X enclosure

APPROVALS:
ND9100: Ex ia / Ex nA: ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO, KOSHA, GOST R and NEPSI
ND9200: Ex ia / Ex nA: ATEX and IECEx
ND9200: Ex d: ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO, KOSHA, GOST R and NEPSI
ND9300: Ex ia / Ex nA: ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO and KOSHA
ND9300: Ex d: ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO, KOSHA, GOST R and NEPSI
ND9400: Ex ia / Ex nA: ATEX, IECEx, INMETRO, cCSAus, CCOE/PESO, KOSHA, GOST R and NEPSI
