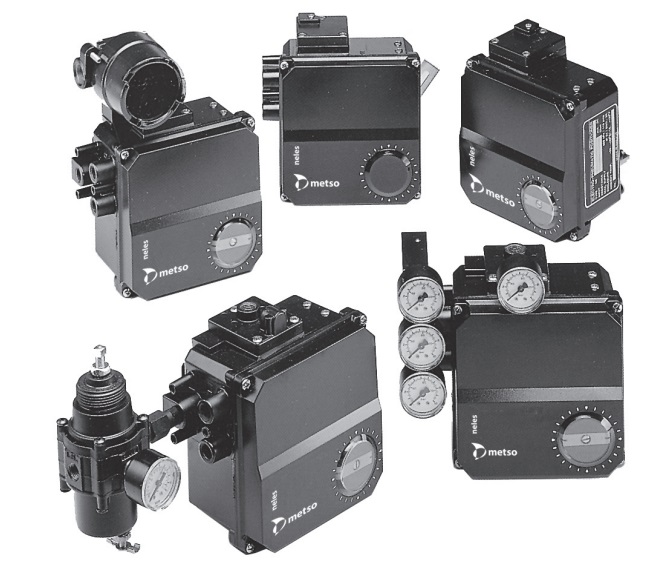

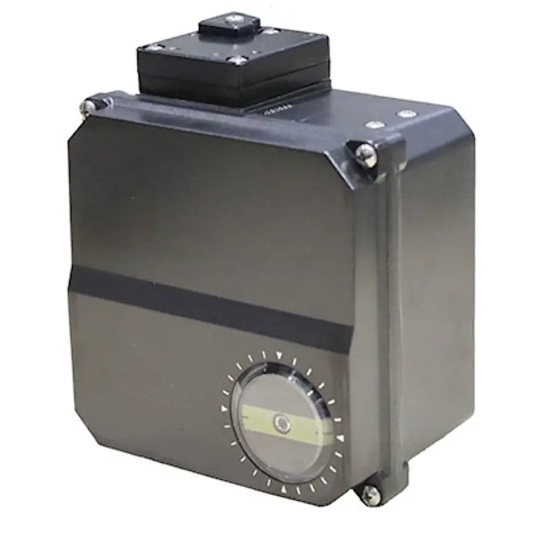

Neles™ NE700/NP700

Excellent repeatability and accuracy in a wide range of applications

Neles NE700/NP700 positioners are designed to operate on every control valve actuator and in all industry areas. They offer a rugged construction with few parts. A small moving mass and rigid mounting provide excellent resistance to vibration. NE700/NP700 positioners provide excellent repeatability and accuracy, with either rotary or linear control valves in a wide range of applications.

Features

Rugged construction, few parts, small moving mass, compact design and rigid mounting provide outstanding vibration resistance.
Multiple pilot valve sizes are used to match positioner capacity compatibility with actuator stroke volume, minimizing response time.
Changes in supply pressure and valve load have minimal effect on positioner operation
Positioner can be set for direct or reverse-acting modes by simply turning around the changeover piece and feedback cam.
