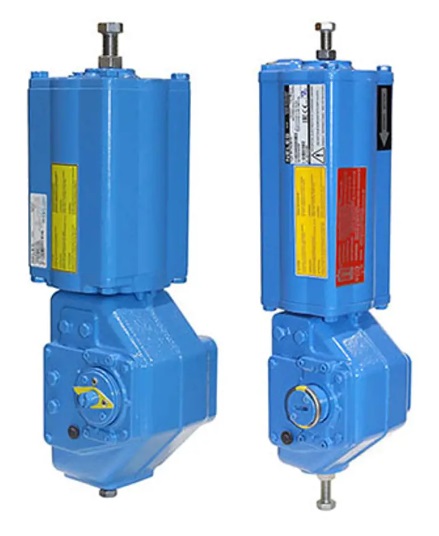

Neles™ Pneumatic Cylinder - Series B1
For use in both modulating control and on-off service
Neles double acting and spring return B1-series piston type quarter turn actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate almost any type of rotary valve.
Features
- Wear and corrosion resistant design
- Safe and easy maintenance
- Suitable for various services, from control to demanding ESD and arctic conditions
- Vast number of optional features
- Rugged design
- Wide torque range
- Type approval according to EN 15714-3
Applications
- Emergency shutdown
- Compressor anti-surge
- High cycle control and on-off applications
- High precision control
- Arctic Service
- Type: Pneumatic cylinder actuator
- Series B1C - double action
- Series B1J - spring return
- Supply pressure: 2.8 - 10 bar
- Torque range: 28 - 100000 Nm
- Temperature ranges: -55 to +120 °C
- Protection class: IP66, IP67 (IEC 60529)
- ATEX class: Ex II 2G/D c IIC TX
- Mounting face: ISO 5211, VDI/VDE 3845
- Long cycle life
- Fast and sensitive response
- Unified design through the whole product range
- Proven reliable design
