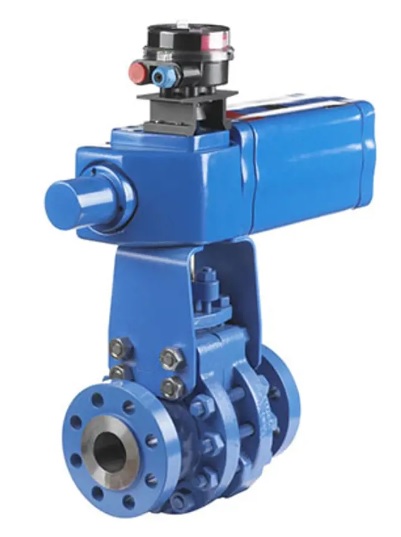

Neles™ Rotary - Series T5

Problem solver in demanding control applications

Neles T5 series top entry rotary ball valves are designed to meet the requirements of chemical, petrochemical and refining industries. Valves equipped with unique trunnion mounted Stemball™, and capability to use Neles Q-trim™ technology anti-cavitation and noise attenuation trims, makes the valve series suitable in wide range of demanding heavy duty control applications including anti surge and blow down services.

Features

Robust, heavy duty trunnion bearings
Unique Stemball™ construction, no backlash on stem to ball connection
Face to face according to IEC 534-3 and ANSI/ISA S75.03
Top entry design, capable for easy weld end connections
Application based seat selection options, metal-to-metal and soft seats
Neles Q-trim™ technology for control applications, anti-cavitation and noise reduction
Latest Neles Q2-trim™ option available for gas applications
Low emissions according to ISO 15848
Fire safe certified according to API 607
High Cv, including noise attenuations trims, which are designs self-flushing

Applications

Crude oil
Hot residual oil
LPG, LNG, Natural gas
Hydrocarbon vapors
High pressure industrial gases
Blow down service
Geothermal water and steam

Construction: Flanged or weld end / Reduced port trunnion mounted ball valve
Size range: DN 25 - 400 / 1" - 16"
Face to face: IEC 534-3 and ANSI/ISA S75.03
Pressure ratings: PN 25 - 100 / ASME 150 - 600
Temperature range: -200 to +600 °C / -320 to +1110 °F
