Stonel™ Eclipse™

Compact and modular limit switch with solid state reliability

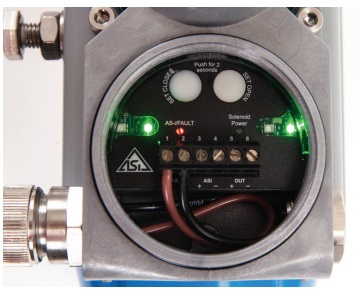

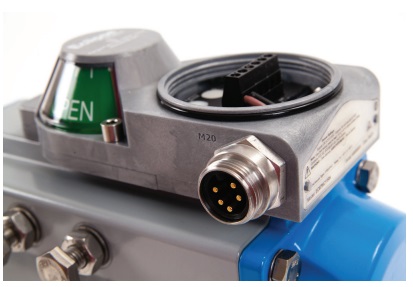

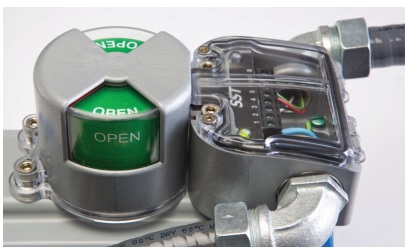

Stonel Eclipse features dual solid state sensors with optional communications neatly integrated into a sealed module. The Eclipse series is available in (3) form factors to meet your application needs. The NEW ultra compact version for general purpose applications (EC), non-incendive and intrinsically safe versions (EN) for hazardous areas with a removable module and in a general purpose, completely sealed, micro-connector version (EG).

Features

Extremely compact, rugged enclosure with integral position sensors, communication, electronics, and power outputs for solenoids
High intensity red and green LEDs

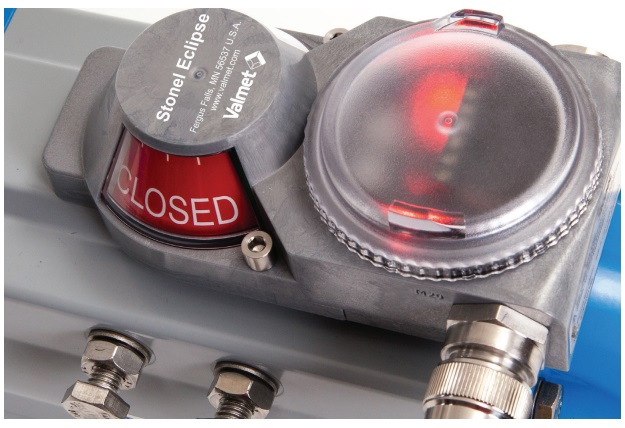

Red/green visual indicator
Sensors and electronics are fully sealed to eliminate hazard threat and corrosion problems
Adjustable target and visual indicator
Direct attachment to ISO/Namur mounting pads with simple mounting kit (sold separately)
Rugged design made of Lexan® or stainless steel for corrosion resistance and durability.

Applications

Automated on/off valve applications in hazardous process environments
Corrosive and wash down process environments
Food and beverage
Chemical process
Pharmaceutical and biotech
Agri-processing

EC35 / EN33 /EG33: Universal voltage switching and solenoid termination
EN44: Namur sensors (7-24 VDC)
EC30: 3-wire PNP/NPN self selecting sensor
Communication options: AS-Interface, DeviceNet, Wireless Link
Temperature range: -40 °C … +80 °C / -40 °F … +176 °F
Material: Polycarbonate
Hazardous area approvals: (EN): Ex i, Class I, Division 1 and Class I, Division 2. See Approvals tab
