Valmet TS - Total Solids
Real-time total solids measurement for wastewater
Control and optimize your total solids using advanced microwave technology with the Valmet Total Solids Measurement (Valmet TS). The most reliable and accurate online measurement for wastewater, the Valmet TS creates new opportunities to save while improving process performance.
Best-in-class accuracy for total solids measurement

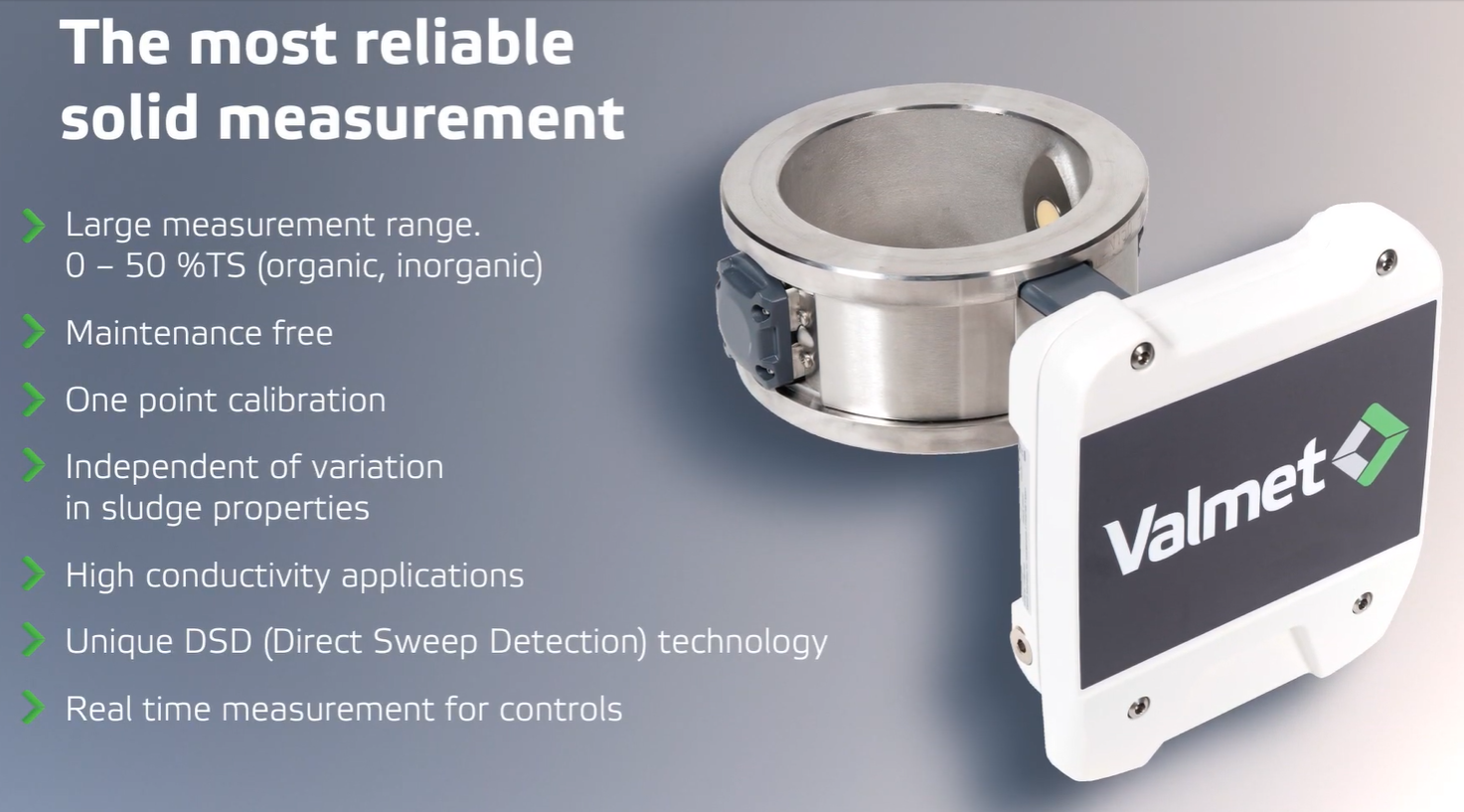

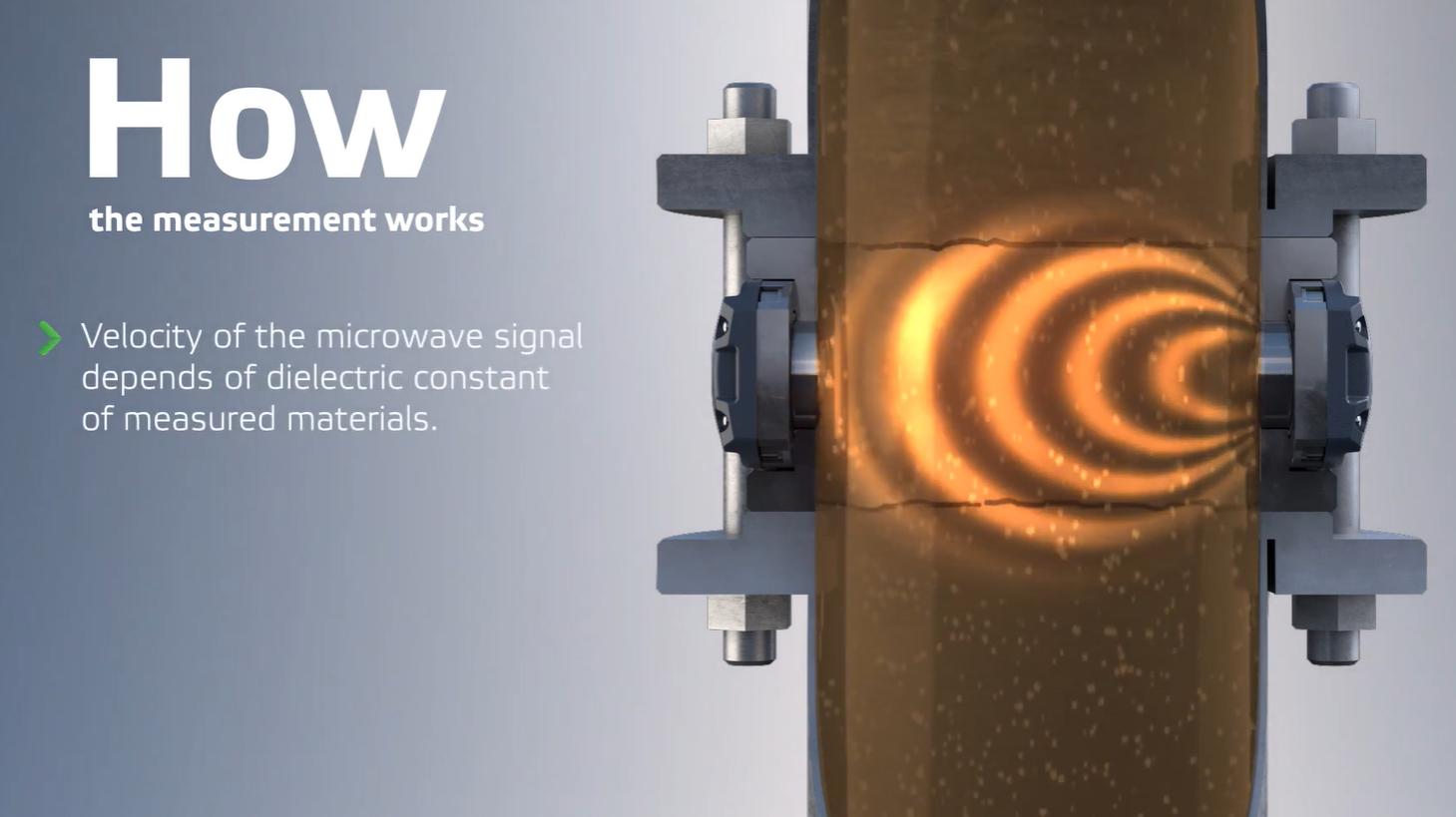

With advanced microwave technology and no wearing parts, the Valmet TS is the most accurate and reliable total solids measurement for any wastewater process. Regardless of flow rate or sludge quality variations, the Valmet TS delivers exceptionally precise measurements using rapid data collection and high sample volumes.
The Valmet TS determines total organic and inorganic solids content from 0% to 50%. Because it continuously measures all solids in the process flow, the Valmet TS enables better control for more efficient industrial and municipal wastewater processes. From reducing water content in dry cake, to optimizing polymer dosage a biogas production, running at better pumping capacity and saving on transportation costs, the Valmet TS delivers what you need.
Online, real-time total solids measurement
With the Valmet TS, you can achieve significant savings through optimized mass flow controls, further advancing the environmental benefits of effective wastewater treatment. Enhance wastewater processes by improving overall efficiency and providing crucial data for dewatering optimization.

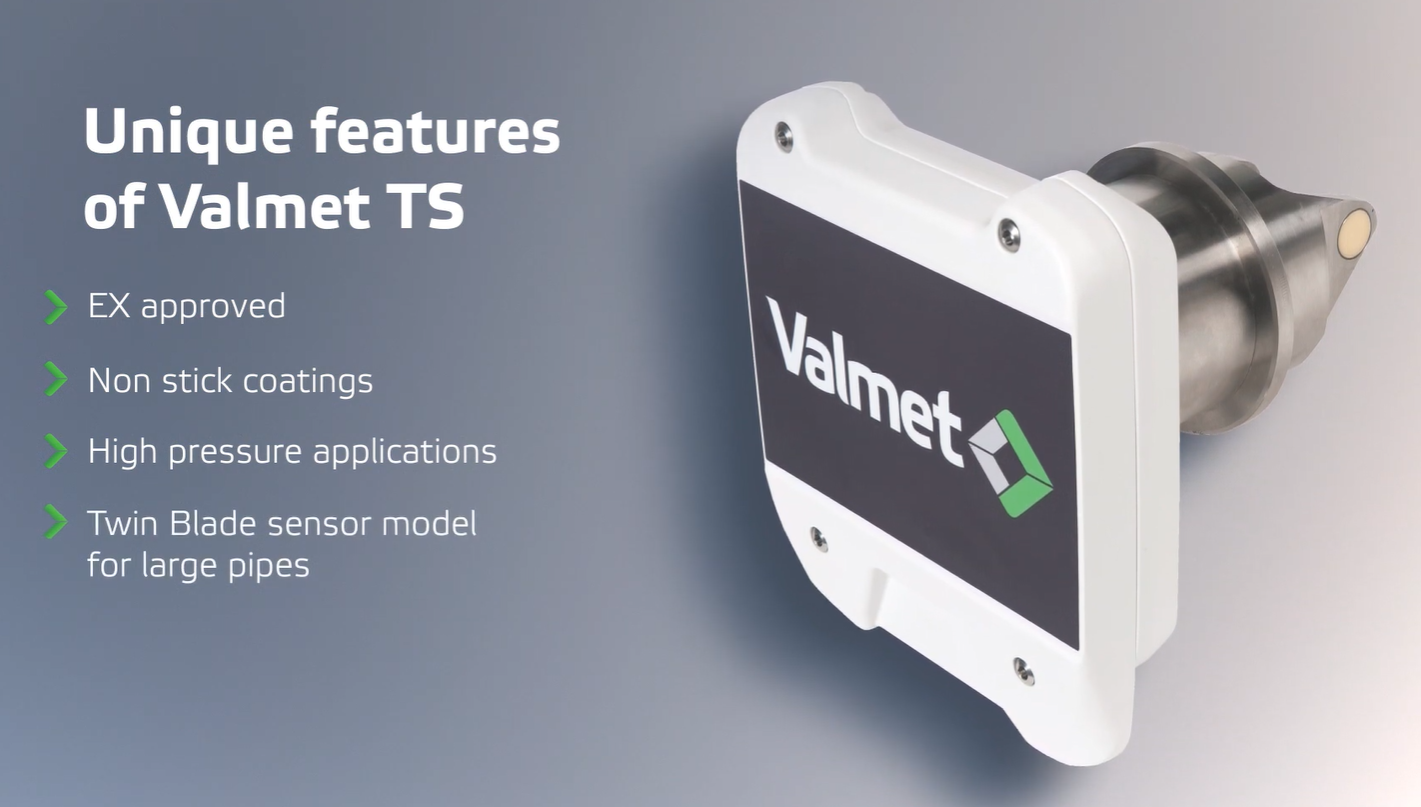

Valmet TS sensors also have ATEX, IECEx, and UKEX certifications and can be used in Explosion Hazardous Areas.

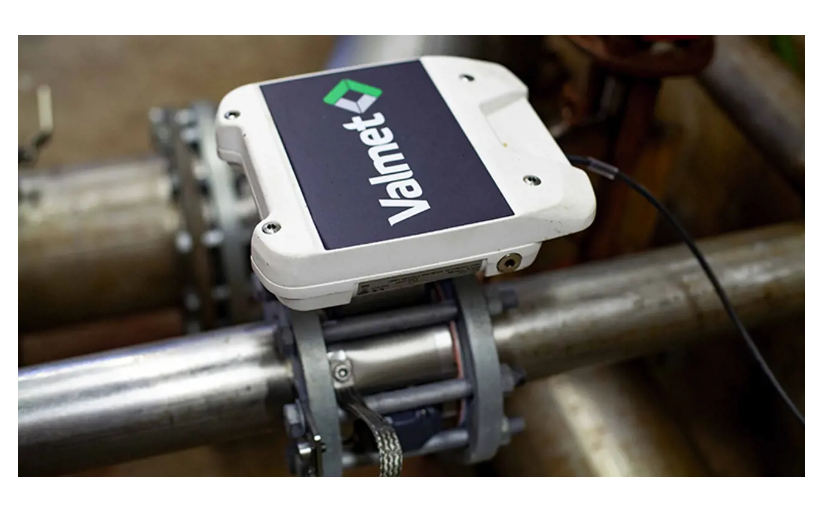

Sensor
Measurement
- Measuring range: 0–40 % TS (if > 40 % TS, please consult with Valmet Automation)
- Repeatability: ± 0.01 % TS
- Sensitivity: 0.001 % TS
- Filtering: 1–99 s
Process conditions
- pH-range: 2.5–11.5
- Temperature: +0–100 °C (+32–212°F)
- Pressure:
- Minimum recommend.: > 1.5 bar (> 22 psi), no free air
- Maximum: 16 bar / 100 bar (232 / 1450 psi)
- Vibration: max. 20 m/s2, 10–200 Hz
Environmental conditions
- Temperature: -10…+70 °C (14…+158°F), protect from direct heat sources
- Housing class: IP66 (NEMA 4X)
- ATEX: Certificate No. VTT 12 ATEX 058X
II 3G Ex nR IIC T6 Gc
EN 60079-0:2010. EN 60079-15:2010
- NOTE: Atex certificate does not apply to sensor models with flushing option
- CRN: 0F17146.5
Materials
- Wetted parts: AISI 316, AISI 316L, Ceramic
- Seals: EPDM

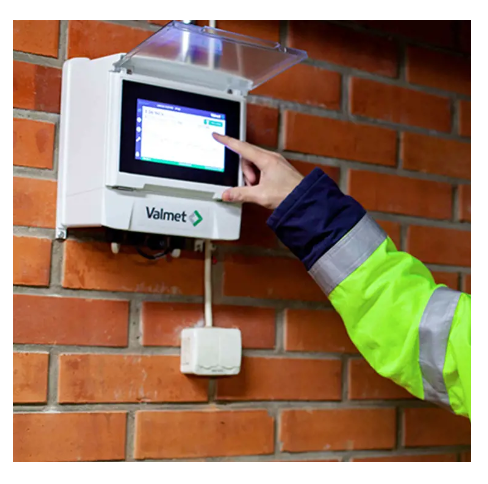

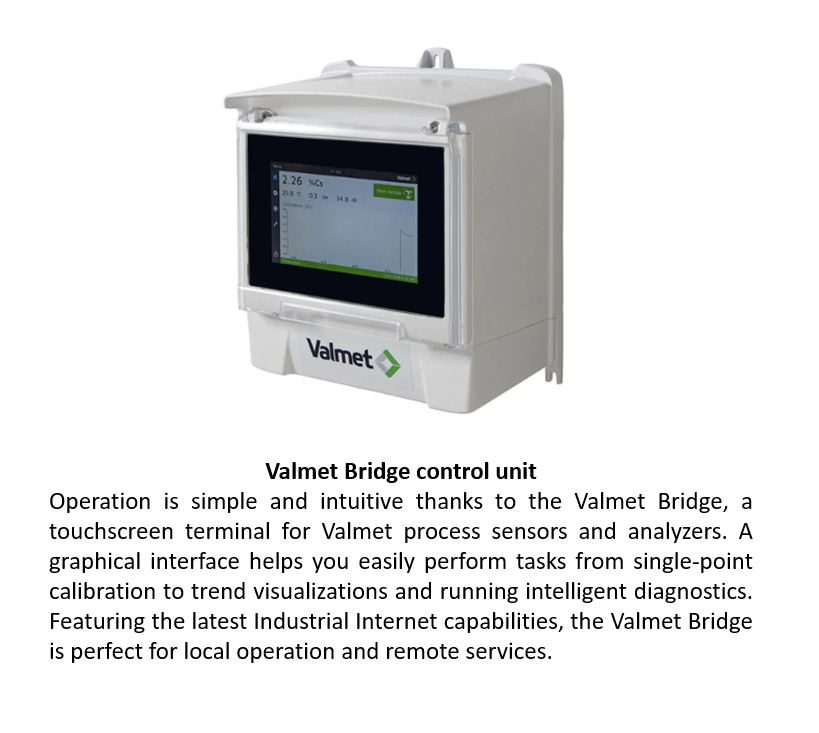

Operating unit TCU
Connections
- Cable to sensor .......10 m (33 ft); option: 30 m (98 ft)
- Operating voltage ....90–260 VAC / 0.1 A
Connections to mill systems
- - analog outputs: 2 current outputs (4–20 mA)
- total solids content + process
- temperature/conductivity (selectable)
- HART®: 12–36 VDC
- binary inputs: 2 x 12–28 VDC/10 mA, isolated
Connections to PC (start-up, service)
- DTM for FieldCare™: HART®
- PC connection (service): RS-232
- Profibus PA
Environmental conditions
- Temperature: -10...55°C (+14…131°F)
- Housing class: IP65 (NEMA 4)
Dimensions & weight
- w x h x d: 232 x 282 x 133 mm (9 1/8" x 11 1/8" x 5 1/4")
- Weight: 2 kg (4.5 lbs)
Fully control wastewater processes with continuous real-time total solids measurements
Quickly react to process changes and stay on your optimum total solids target
Save time with simple, reliable and completely maintenance-free measurements
